LED is basically a small chip being sealed in the epoxy resin inside, so it is very small, while very bright. Power consumption of LED light is fairly low; the working voltage of general LED lights is 2 - 3.6 V and the working current is 0.02-0.03 A, which means the power consumption is less than 0.1 W.The inherent characteristics of LED light make it the most ideal illuminant to replace traditional illuminant, so it has been widely applied in many sectors nowadays.

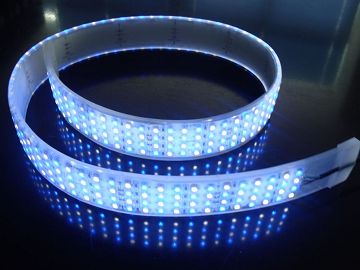

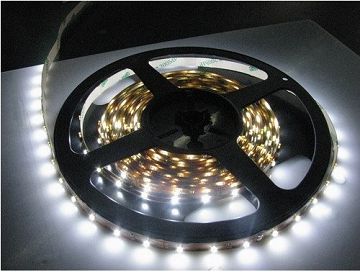

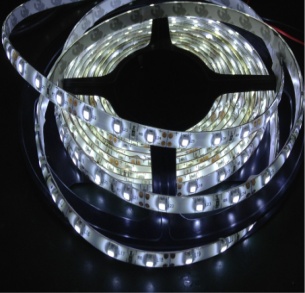

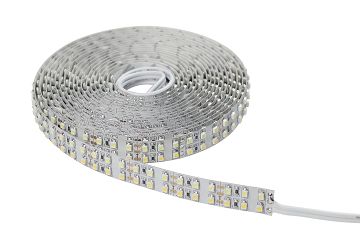

LED strip uses polyimide PI substrate flex circuit as the carrier, through the series-parallel circuit design, installs high brightness LED lights chips on the LED flexible light strip, cooperates with the power source and luminous program controller, to achieve more glaring light effects with LED lights.

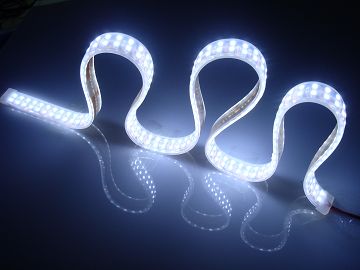

The flexible circuit board has good mechanical properties, which makes the LED flexible light strip bended easily and arbitrarily, and can be fixed on arbitrary convex surface. With reasonable design and welding technology it can reduce the chance that the light bar does not work as well as other quality problems so as to improve product stability. By selecting the connection between full power, high efficiency and low consumption LED chips and circuit board, we can effectively extend the control length of the of LED strip, so we can create colorful LED strip world.

LED Strip Features

LED flexible light strip uses flexible circuit board, which has excellent performance. It is easy for cutting and connecting. Under high temperature, waterproof and dustproof, these led strips can reach up to IP68, ultra-thin thickness of 3mm, 3M double-sided tape fixed, what is more, its service life can be over 50000H, and it also can be produced according to customer's specific requirements.

LED Strip Applications

  1. LED flexible light strip can be used in city skyline lighting (buildings, advertising wall, signs, Christmas landscape decoration)
  2. Irregular design body decoration (hotel / nightclub / KTV places such as polygonal walls, water droplets of HangTian spend polygons groove design)
  3. Household dark slot edge (door frames, bar, wine cabinet, wardrobe, TV cabinet)
  4. Car beauty (car-body, underneath the car)

LED Strip Usages and Attention

  1. As most of the LED flexible light strips adopt low tension, please remember to give a good match to the corresponding strip transformer during the installation process, so as to avoid the impact damage to the light strips.
  2. Try to avoid putting the LED light source and the resistance into the bend point of the strip in order to avoid the sealing off of the light source and resistance when LED flexible light strip is being installed, or some light source may not be lit.
  3. Tear double-sided adhesive on the back of the products and paste it to the proper point during installation; or it may be not bright enough.
  4. Do not connect it more than 5 meters length During using.

LED Strip Packing Instructions

Our LED light strips all adopt standard packaging standard, which adopt antistatic bag and cardboard box as packaging materials, and we will take certain protective measures to ensure the LED light strips' safety during transportation.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!
