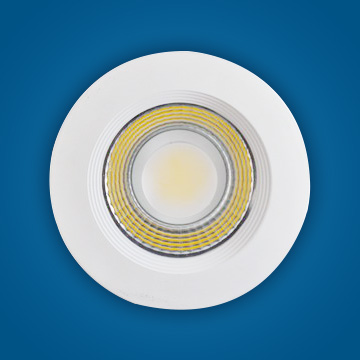

wholesale 12w COB LED down light

  • Name: COB Down Light
  • Item No: GC-D5B
  • Power: 12W
  • Input Voltage: AC85-265V
  • CCT: 3000K/4500K/6000K
  • CRI: 70-85
  • Luminous Flux: 800-950LM
  • Beam Angle: 60°
  • Size: ¢145*H52MM
  • Cut-off Hole size: 105MM
  • Weight: 430G


Features:

1. Low heat, perfect heat dissipation, within 70° for junction temperature, the luminous decline is no less than 5% within10, 000 hours, ensuring a long life span

2. High Luminous efficiency (70-85LM/W for light engine), 60°radiation angle, and excellent secondary optical design

3. High quality power supply, which is specially designed based on our light board; no electrolytic capacitor, which is well matched with the long life design of our wholesale 12w COB LED down light; high power factor (>90%) and transferring efficiency (>85)

4. No glare, no double image, no color shifting.

5. Simple structure and installation: PC fixture without extra cooling structure, external driver, convenient and cost saving for transportation and installation.

6. Diverse options: 3000K, 4500K, 6500K for warm white, true white and cold white color temperature, clear or frosted lens for choice

7. CCC, CE, RoHS certificates, 2 years' warranty from the date of delivery

8. High quality aluminum heat sink design, which effectively reduce LED chip JT (junction temperature), ensuring the whole lifespan of our wholesale 12w COB LED down light.

Application:

1. Recessed lighting, shelf lighting, ceiling/wall cover

2. Cabinet and under counter lighting, office lighting etc

3. Back lighting, step lighting, light boxes

4. Merchandising, exhibition stands, and panels lighting, etc.



Wholesale 12w COB LED down light



If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!
