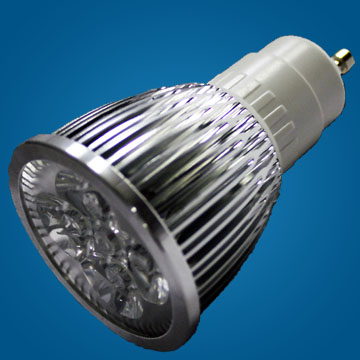

GU10 LED Spot Light

  • Name: GC-S023-5W GU10 LED Spot Light
  • Power: 5W
  • Input Voltage (AC): 85-265V
  • Lumens: 350-375lm
  • Color Temperature: 2700K-7000K
  • Beam angle: 15°30°45°60°80°
  • Dimensions: ¢50*H70mm
  • Base: GU10
  • Lifespan: 50000H

Part No. GC-S023-5W
LED QTY 5
Input Vol. 85-265VAC
Net Weight 270g
Power 5W
Lamp size D50*H72.5mm
Working Temp -20°C~ 45°C
Life Span 50,000 H
Color 2800K,4100K,6500K
Lamp Base E27
Beam angle 25°,45°
Lumens 320LM
CRI 80
Approval LVD,EMC

Our GC-S023-5W GU10 LED spot light has incredible quality and steady performance. The traditional incandescent bulb technology is out of date. Now we are able to offer a direct perfect replacement for your current incandescent fluorescent or CFL bulbs with these energy-saving LED retrofit bulbs. LED technology is the main direction for future development and it can eliminate the side effects brought by the glass, fragile filaments and mercury. Our GC-S023-5W GU10 LED spot light only consume 5W on average and the life span can reach up to 50,000 hours, which is equivalent of 50 incandescent bulbs throughout their life-span. We offer a variety of sizes and styles to meet a wide variety of applications in your home and office. GC-S023-5W GU10 LED spot light helps protect the environmental protection. There is not mercury or other harmful gases in GC-S023-5W. Unlike the conventional incandescent bulbs which contain highly toxic gases, GU10 LED spotlight bulbs are made of recyclable materials and can be disposed of without harm to the environment.

If you're interested in our products or have any questions about it, please let us know. Don't hesitate to contact us!

Knowledge

GU10 LED Spotlight Bulbs

GU10 LED spot light is one kind of the LED spot light, G means that the lamp holder is plug-in type; U means that the part of the lamp holder is U-shaped; the following numbers indicate the distance between the two contacts is 10mm. Now the prevailing driving mode of the GU10 LED spotlight bulbs has two ways, one is that a constant voltage supply with multiple constant current source, each constant current source separately supplies LED power supply to each channel. In this way, the combination is flexible, the stoppage of one LED spot light bulbs does not affect the other LED's work, but the cost will be slightly higher. The other is a direct constant current power supply, the GU10 LED spotlight bulbs operate with series or parallel. It has the advantage of lower cost, but the flexibility is poor, and also we need to resolve the stoppage of a LED spot bulb, ensuring the other LED spot light bulbs normal operation. These two forms coexist in a period of time. Our company adopts the multi-channel constant current output way, which will be better in cost and performance. It will be the mainstream of the LED spot light in the future.
